Fixed platform
A flat deck for materials, equipment and secured loads.
- 3,000 kg component rating
- 165 × 74 cm deck
- 190 kg attachment weight
The platform component rating does not increase the base carrier limit.
Elma tracked carrier attachments
One carrier. More possibilities.
From glass sheets to loose materials, explore the Elma attachment range and the different roles it offers.
Explore the attachment range.
Platforms, racks, dumper and bucket configurations, and lift kits. Ask the supplier to confirm compatibility, fittings and working capacity for your chosen carrier.

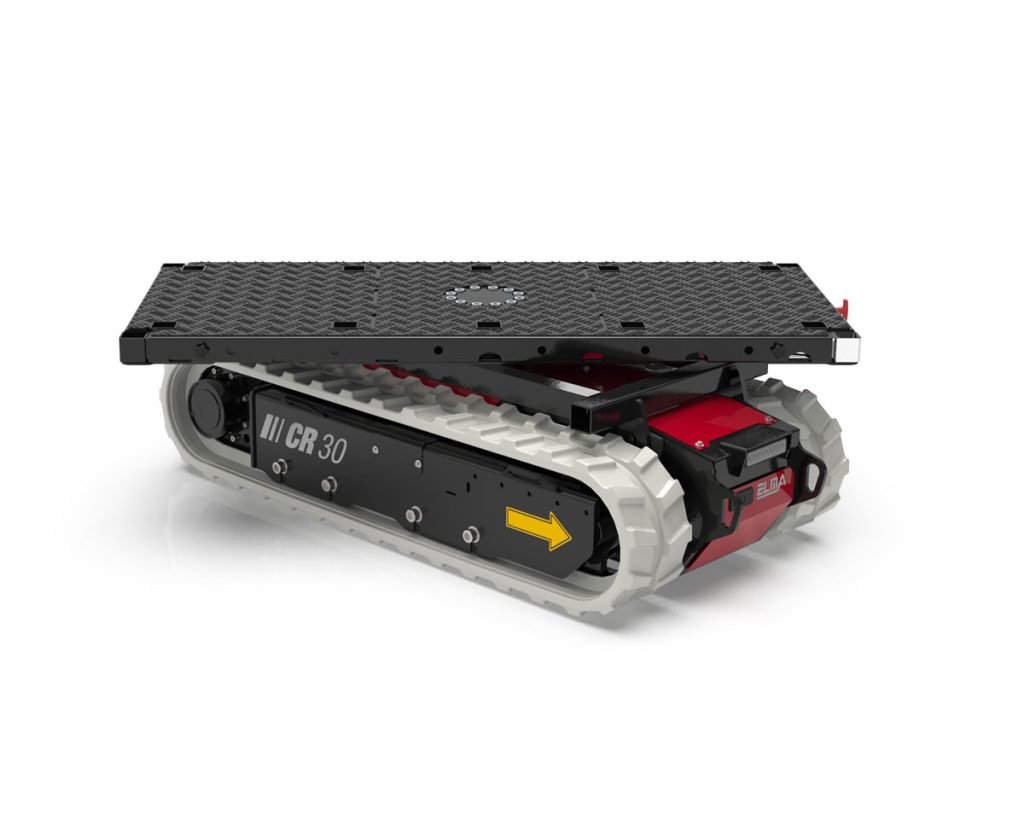

Rotating platform
Turn the platform through 180° to change the load orientation.
- 3,000 kg component rating
- 165 × 74 cm deck; 180° rotation
- 190 kg attachment weight
The platform component rating does not increase the base carrier limit.

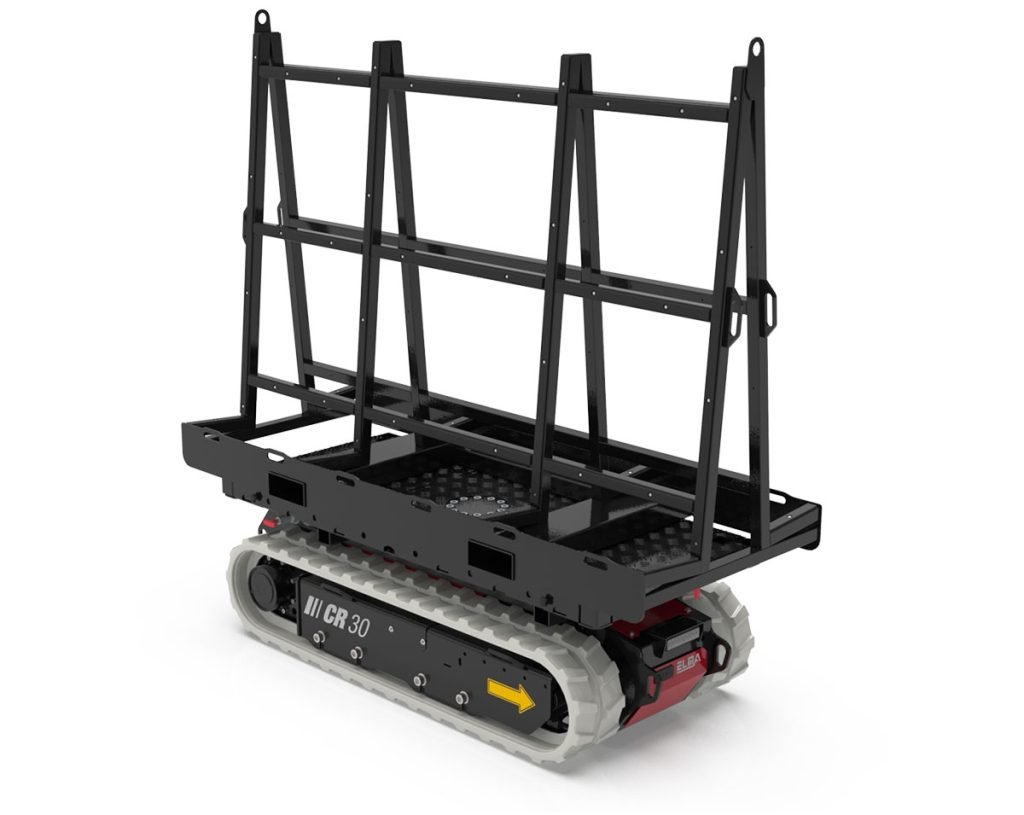

Glass transport kit
An inclined rack for transporting glass sheets and panels.
- 1,375 kg / 2,875 kg, configuration-dependent
- 199 × 76 × 140 cm; 10° inclination
- 125 kg attachment weight
Requires a fixed or rotating platform.

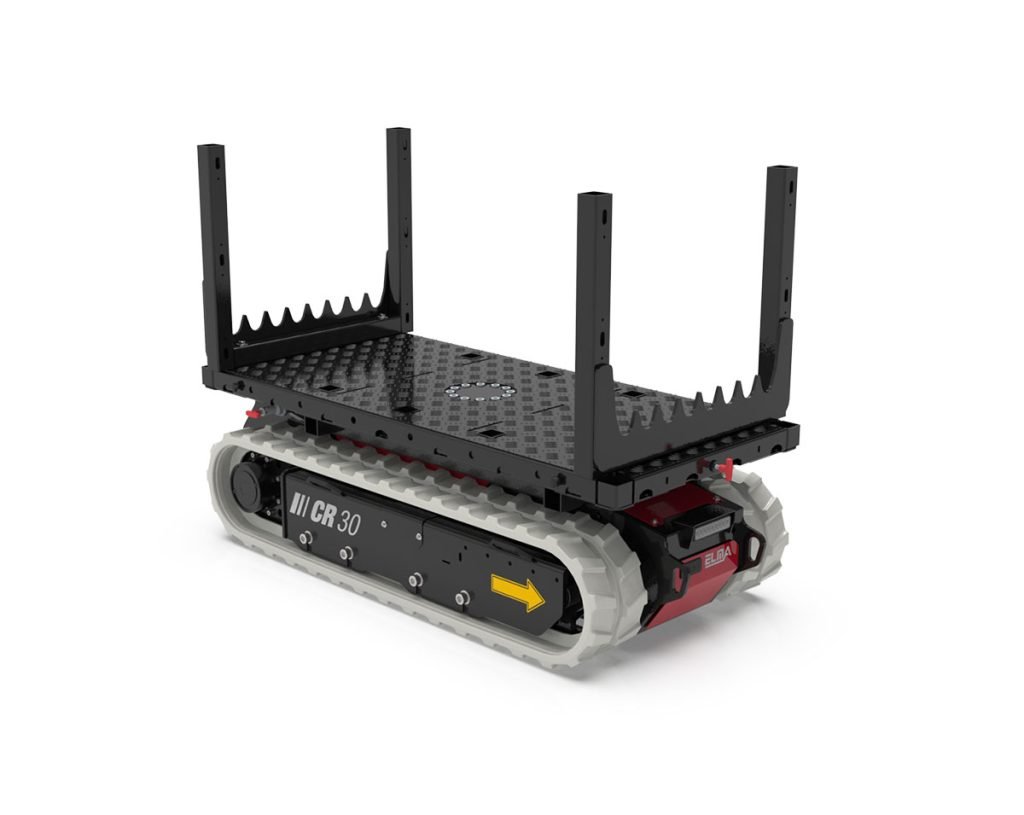

Forestry kit
Upright holders support timber and similar long materials on the deck.
- 1,450 kg / 3,000 kg, configuration-dependent
- 153 × 66 cm between holders; 66 cm holder height
- 50 kg attachment weight
Requires a fixed or rotating platform.

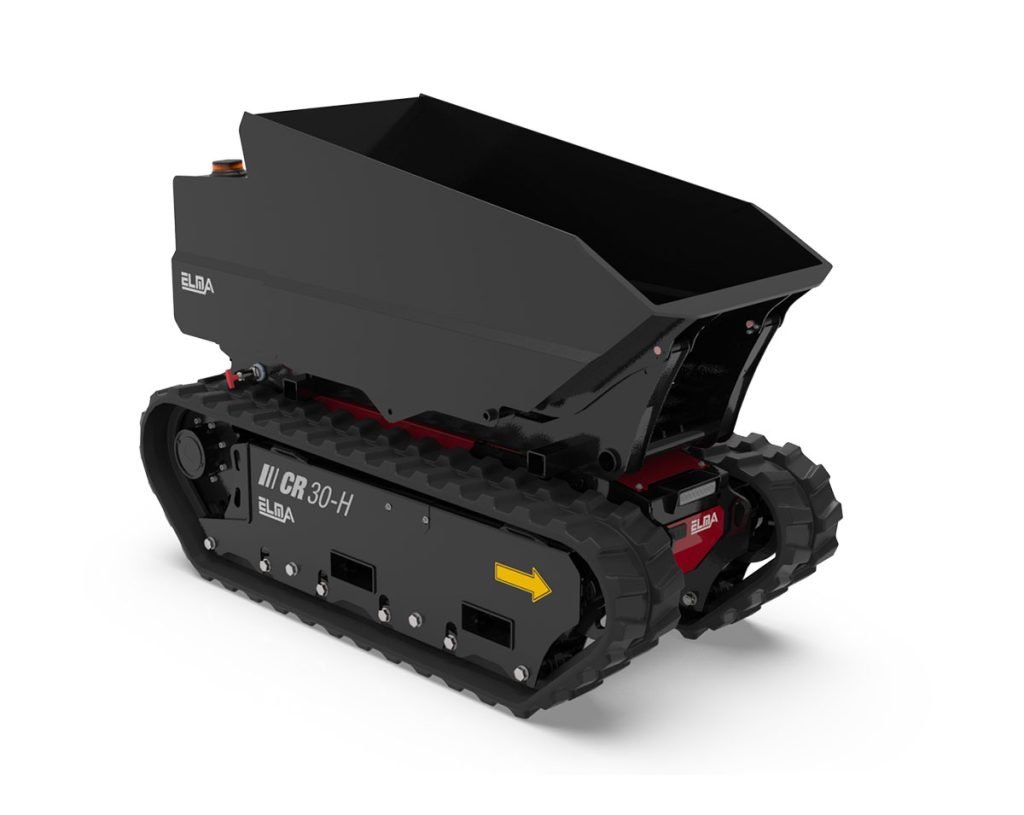

Dumper kit
A tipping body for moving loose materials around outdoor projects.
- 1,300 kg published kit capacity
- 420-litre volume
- 220 kg attachment weight

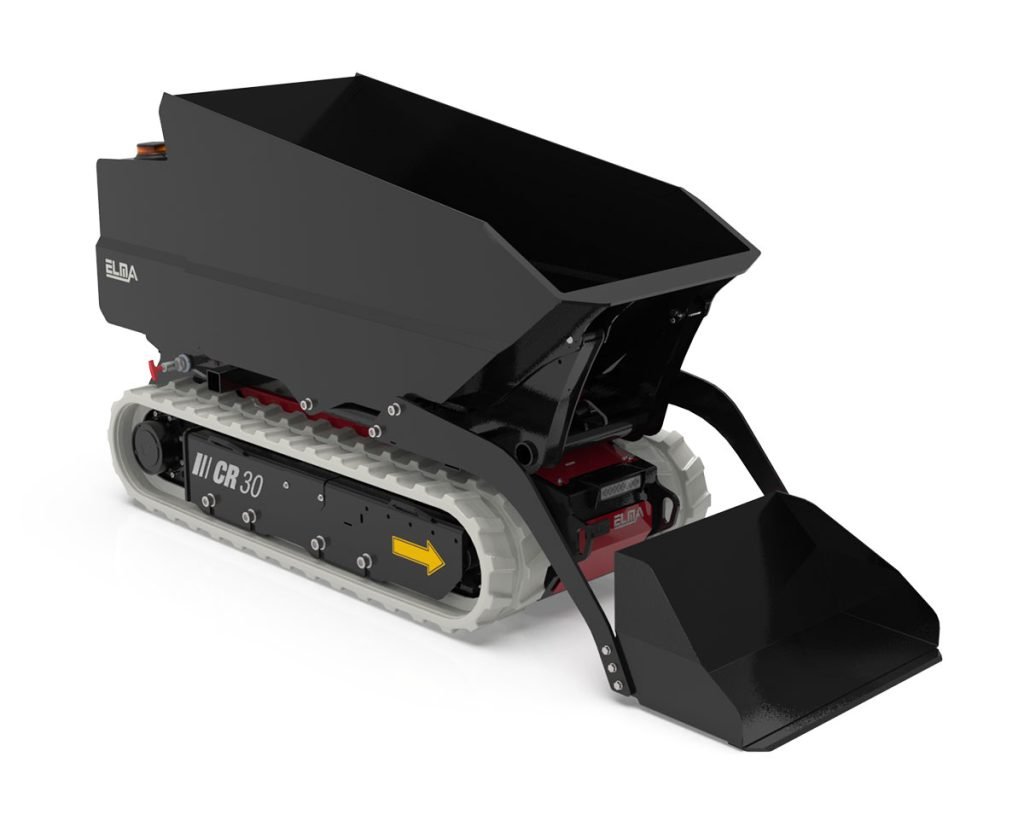

Dumper + bucket kit
A bucket for the dumper configuration, for handling loose material.
- 100 kg bucket capacity; 50 litres
- 10 cm digging depth; 161 cm lifting height
- 35 kg bucket weight
Bucket figures are separate from dumper capacity.

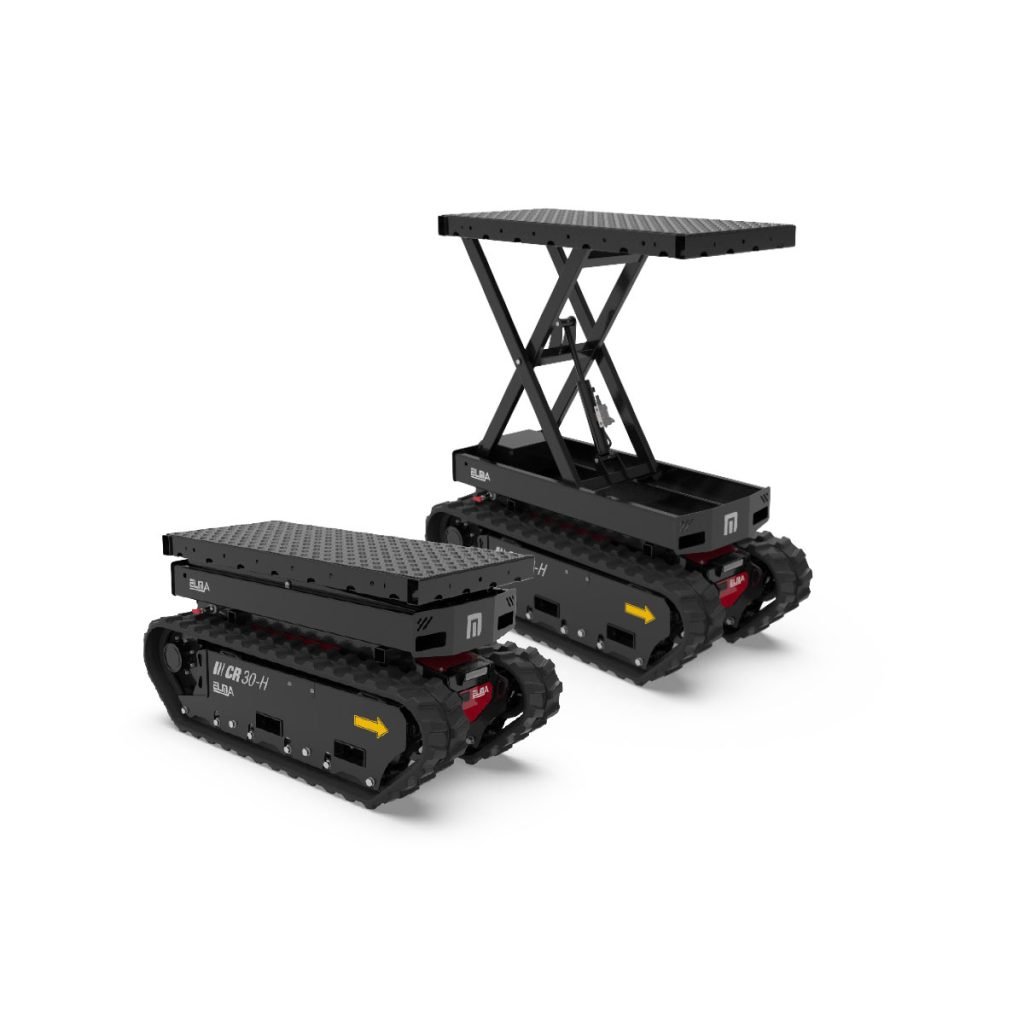

Lift kit 1
A lifting platform for bringing supported loads to a working height.
- 990 kg published kit capacity
- 186 cm / 206 cm maximum elevation, configuration-dependent
- 290 kg attachment weight

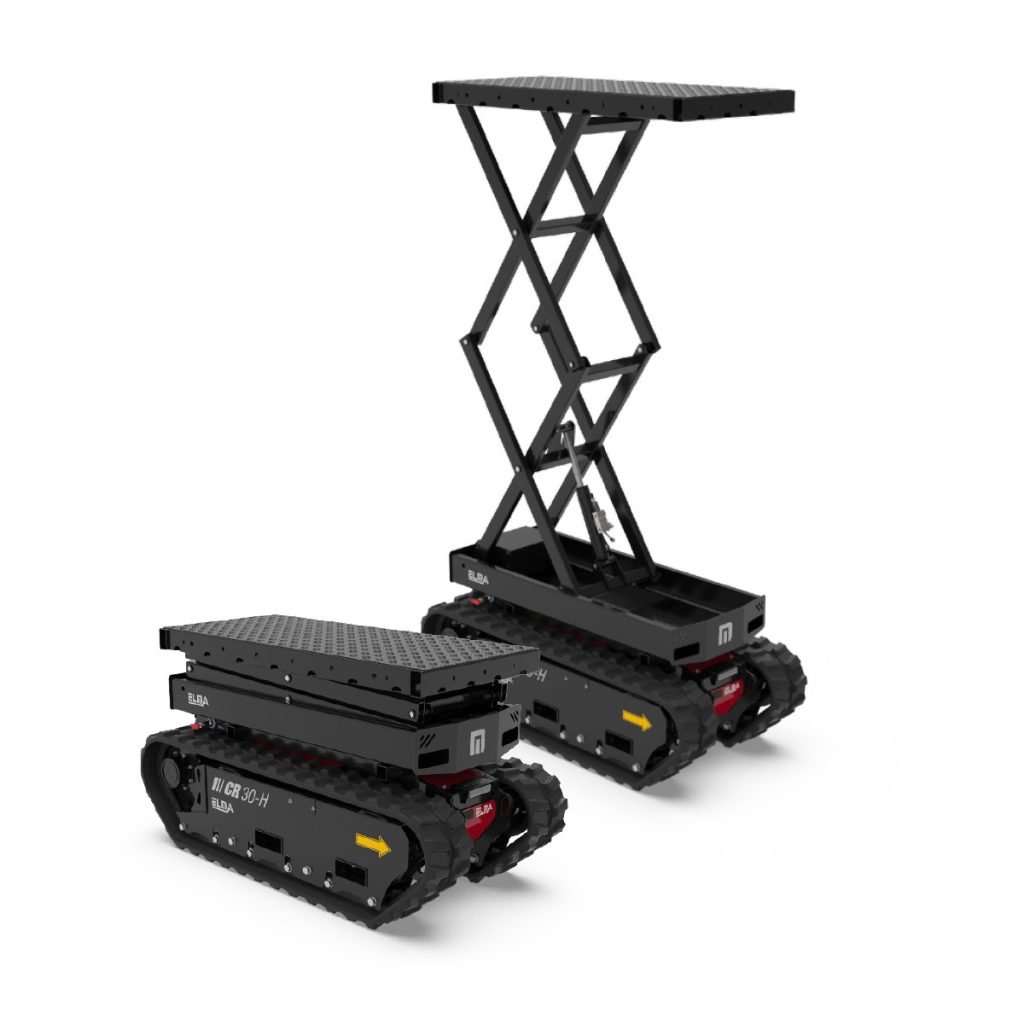

Lift kit 2
A taller lifting platform with a lower rated capacity.
- 490 kg published kit capacity
- 305 cm / 325 cm maximum elevation, configuration-dependent
- 350 kg attachment weight
Manufacturer figures are shown for reference. Model compatibility, fittings, final configuration and working capacity should be confirmed with the supplier. Attachment ratings do not increase the base carrier limit.
CR Series equipment
Power, control & add-ons
Electric drive and radio control are part of the range. Other equipment depends on the supplied configuration.

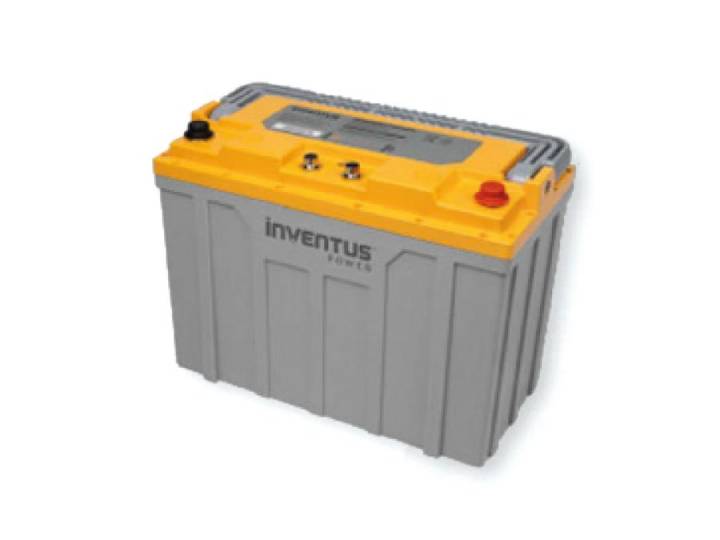

Modular batteries
Independent lithium modules, with Elma listing charging within three hours. Capacity and charge time depend on the configuration.

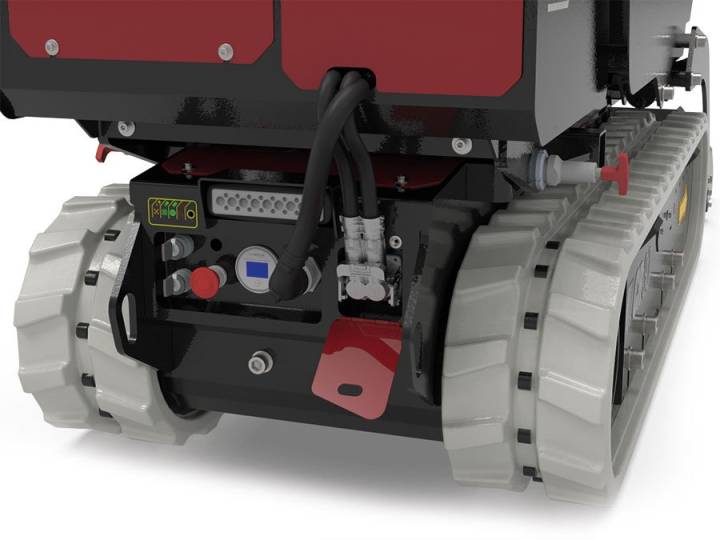

Hydraulic quick couplers
Rear connections for compatible hydraulic attachments.

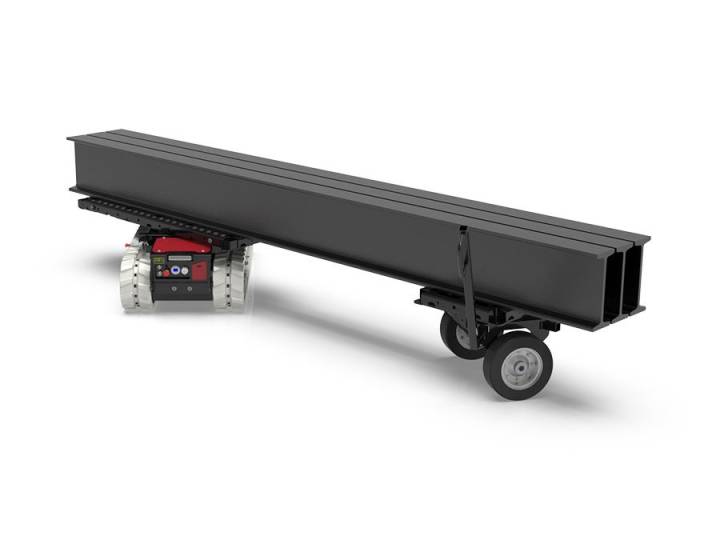

Dolly system
A range option for transporting heavy equipment. Compatibility and capacity depend on the full setup.

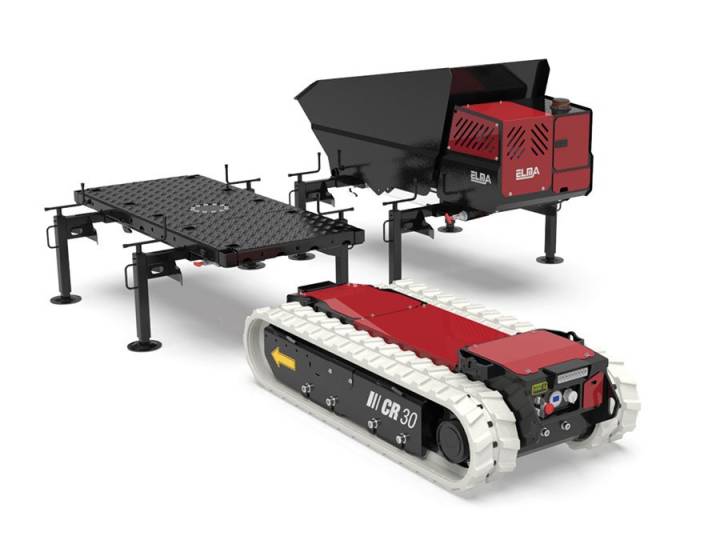

Attachment storage kit
A range option for removing and temporarily storing accessories.
An integrated battery heater is also listed as an option. Radio remote control is listed for all three models.
Manufacturer documents
Keep the details to hand.
Specifications, dimensions and attachment configurations from Elma, available here.
Download Elma CR Series brochure (PDF)The CR Series PDF is an extract of the original catalogue, printed pages 4–11.
